Projection System
Ultra-short-throw pure laser / ALPD laser projection with 5,000-8,000 ANSI lumens and 4K UHD / 1080P output.
Products
5D Immersive Light & Shadow Restaurant System Solution
Immersive projection for high-end dining rooms, combining tabletop dish projection, panoramic wall blending, and synchronized themed scenes.
Request a Quote

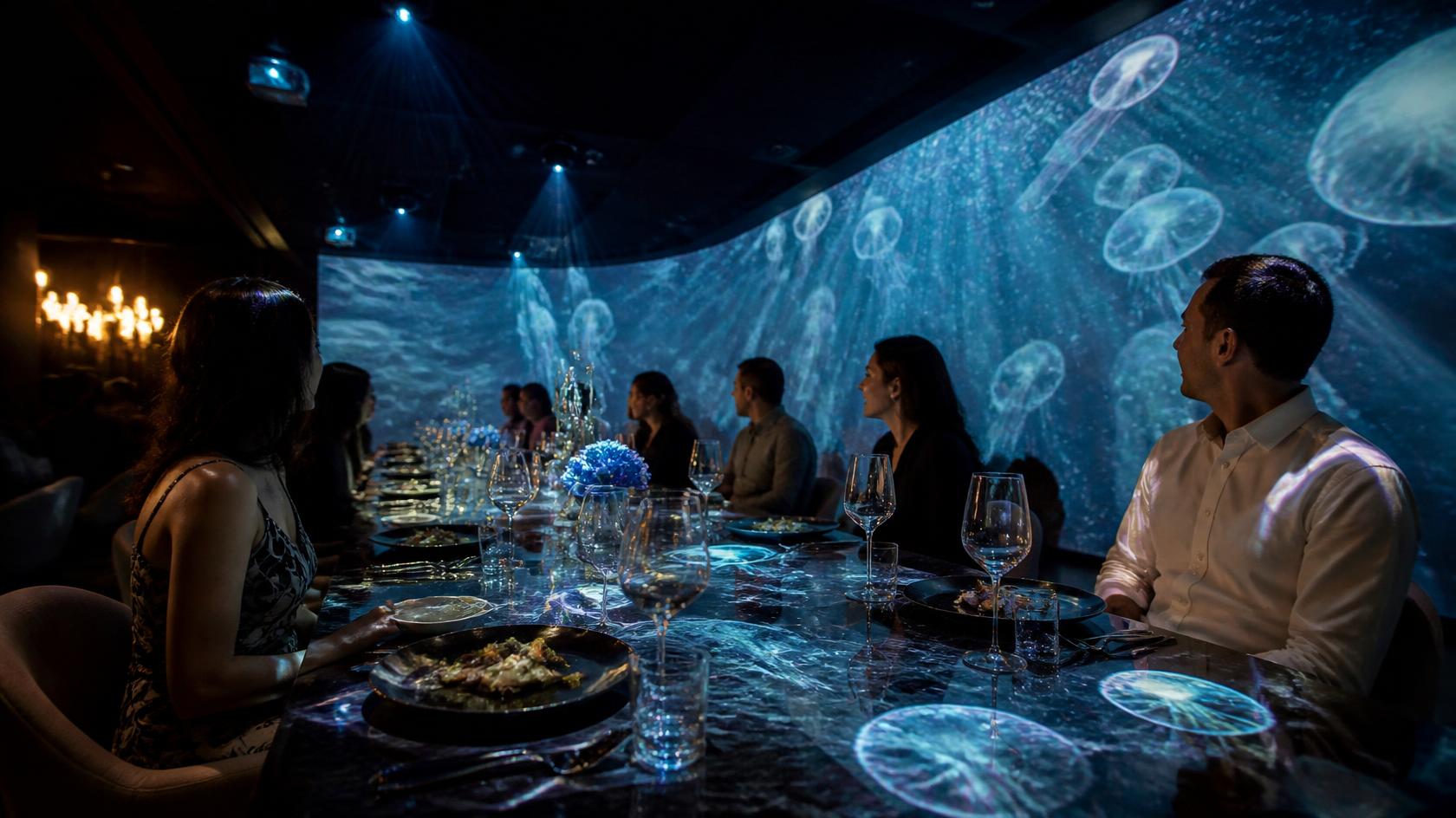

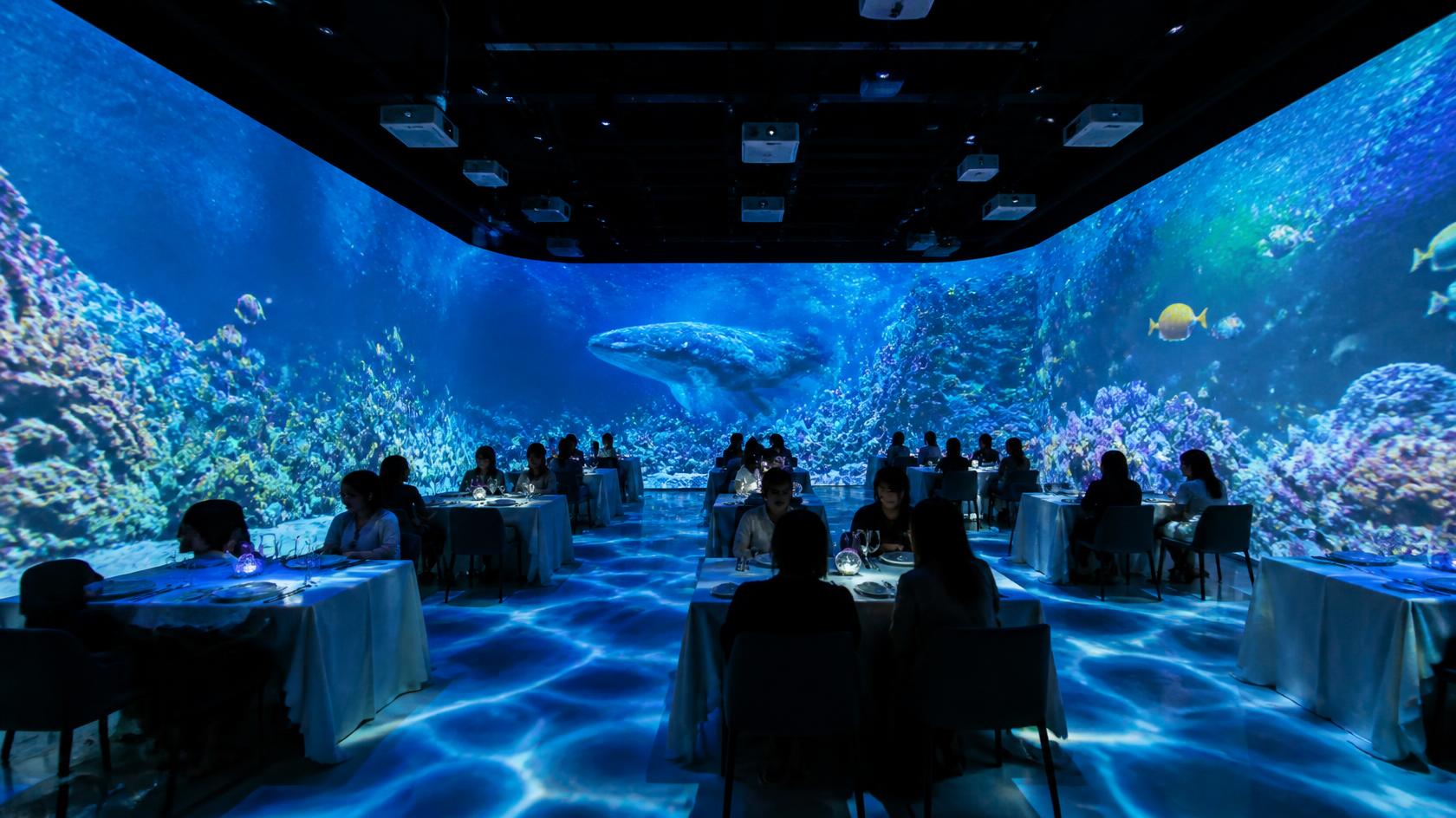

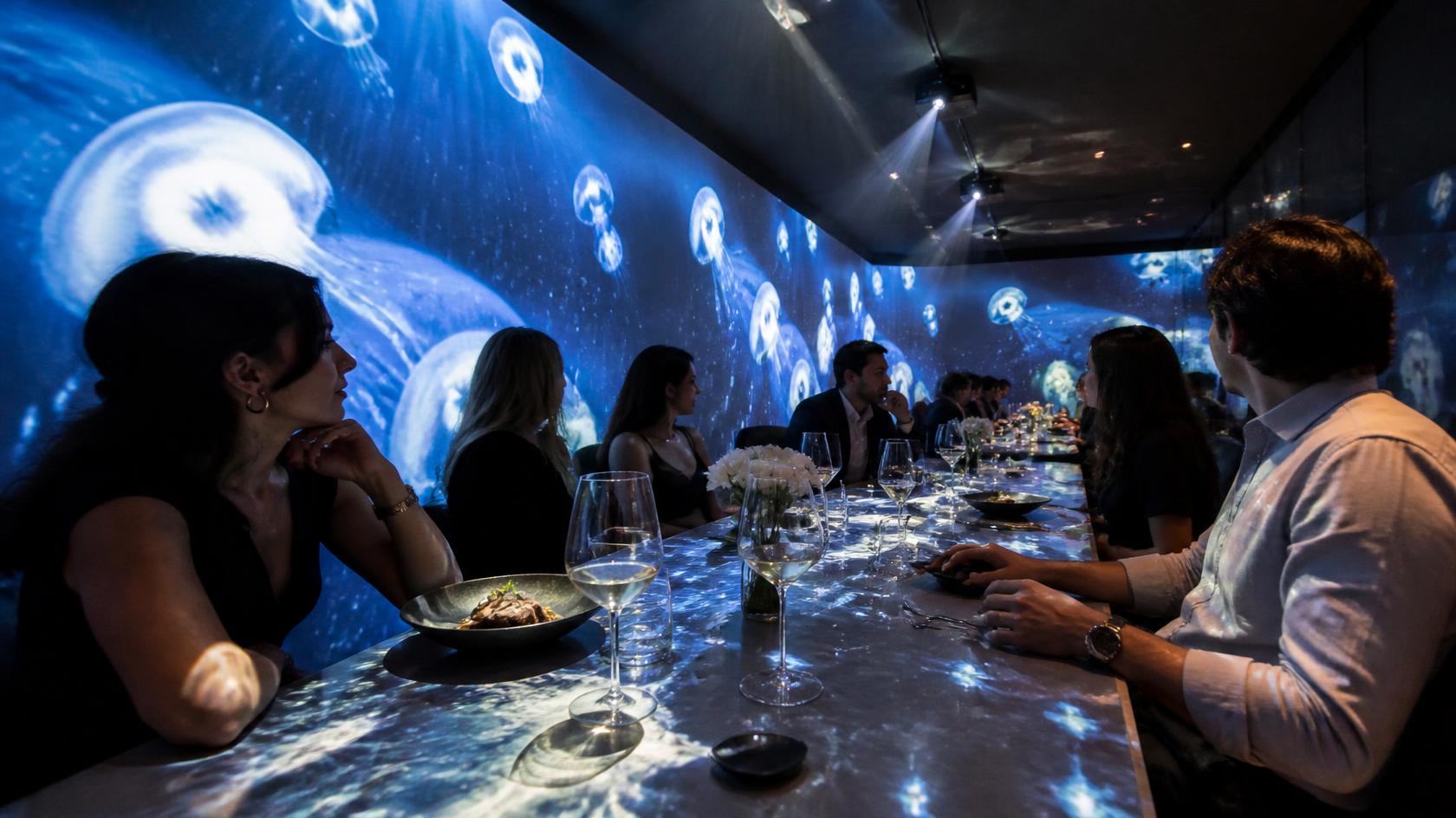

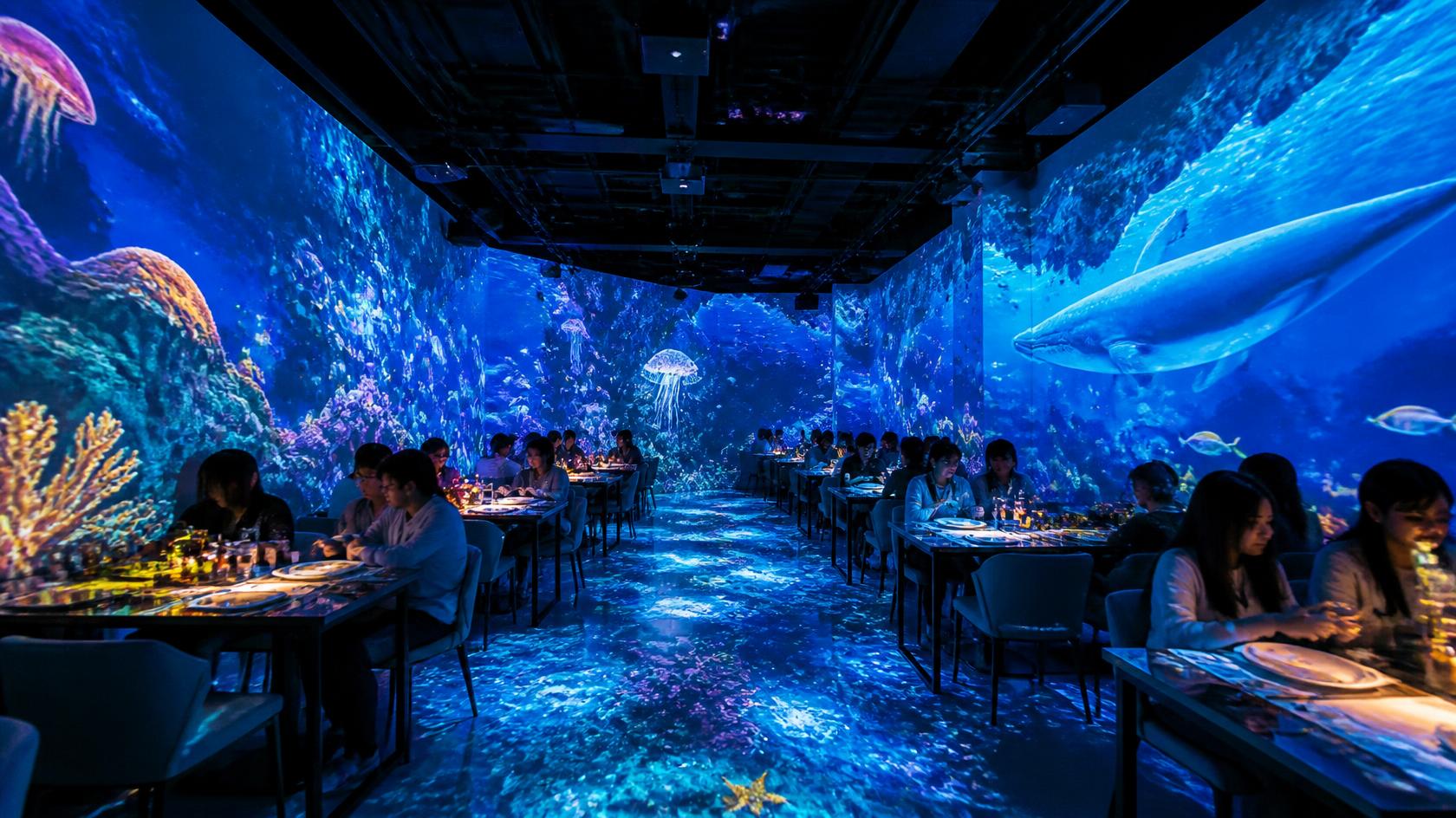

Gallery
Product Overview
The system integrates taste and vision to create a gastronomic-visual experience for high-end dining, themed restaurants, and specialty private dining rooms. It combines glasses-free 3D tabletop projection with 360-degree wall projection and one-click theme switching for synchronized dining scenes.
Key Features
- Glasses-free 3D tabletop projection aligned with plates and tabletops
- 360-degree seamless panoramic wall projection
- One-click switching between multiple 4K/8K dining themes
- Wireless tablet control for synchronized scene changes
- Radar-based tabletop interaction and touch sensing
- Ultra-short-throw deployment designed to reduce shadowing
Technical Specifications
- System name
- Immersive Light & Shadow Restaurant / 5D Private Dining Room Tabletop + Wall Blending System
- Light source type
- Pure Laser / ALPD Laser Technology; lifespan >= 30,000 hours
- Single-unit brightness
- 5,000-8,000 ANSI Lumens, selected based on ambient light and projection area
- Throw ratio
- 0.23:1-0.25:1 ultra-short-throw lens; wall-mounted or vertical downward projection
- Resolution and color
- 4K UHD / 1080P HD output; supports Rec.709 wide color gamut
- Geometry correction and alignment
- Multi-channel seamless blending; round/rectangular tabletop alignment accuracy <= 1 mm
- System server/host
- Industrial-grade immersive image blending workstation with built-in discrete graphics and 8K video decoding
- Interaction and sensing
- Radar-based tabletop interaction system / touch-sensing module; gesture control and plate-placement effects
- Control and operation
- iPad/Android central control app with one-touch scene switching and synchronized audio-visual/lighting effects
- Heat dissipation and noise
- Optimized airflow design; operating noise <= 28 dB
- Interface configuration
- HDMI 2.0 x 2, DP 1.4, LAN (RJ45), RS232, Audio Out
- Power supply
- AC 100V-240V, 50/60 Hz; scheduled automatic power on/off
- Applications
- 5D themed private rooms, French/Japanese immersive restaurants, bars, banquet rooms, digital art experience restaurants
Applications
- 5D themed private rooms
- French and Japanese immersive restaurants
- Bars
- Banquet rooms
- Digital art experience restaurants
System Configuration / How It Works
Tabletop Projection
Glasses-free 3D projection aligned with plates and round or rectangular tabletops.
Wall Projection
Multi-channel seamless blending for panoramic wall visuals.
Interaction
Radar-based tabletop sensing and touch-sensing module for interactive effects.
Control
iPad/Android central control with one-touch scene switching and synchronized audio-visual effects.
Power
AC 100V-240V, 50/60 Hz with scheduled automatic power on/off.
