Fully Immersive Light & Shadow Wedding Banquet Hall System Solution

Gallery

Product Overview

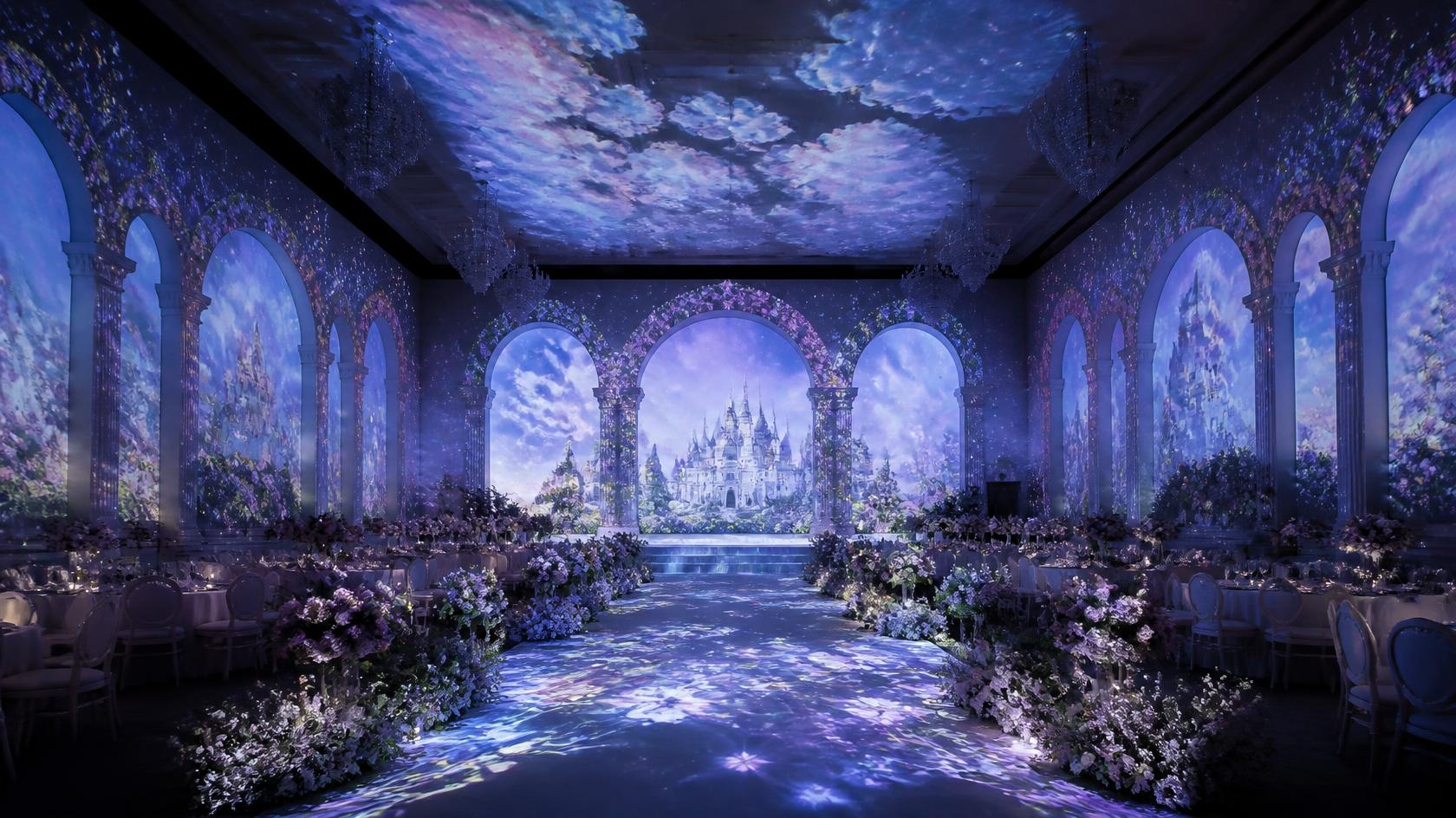

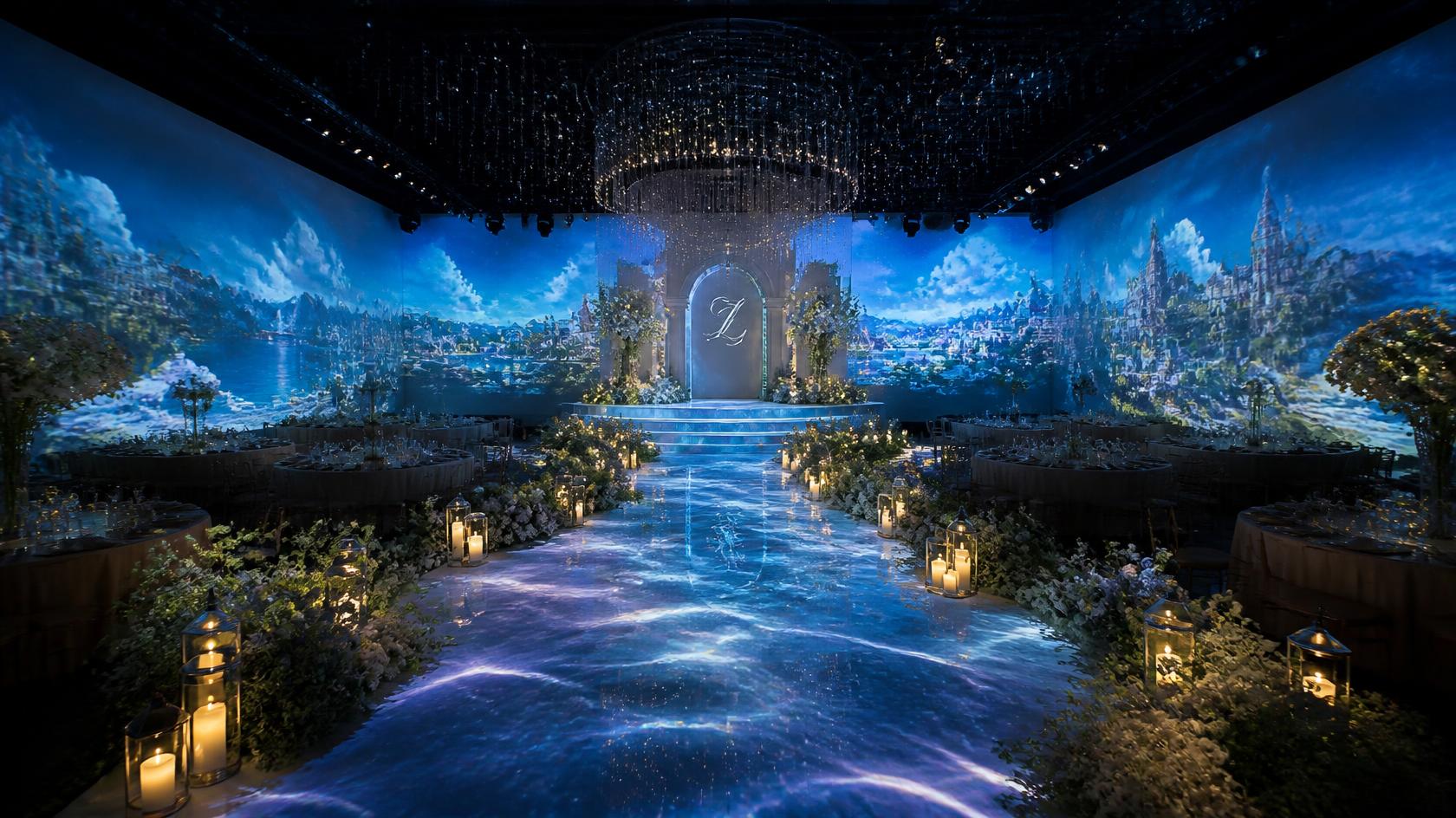

The immersive wedding projection system transforms banquet hall walls, floors, and ceilings into a 360-degree panoramic environment. It combines multiple laser projectors, ultra-short-throw lenses, edge blending, and geometric correction for customizable wedding scenes.

Key Features

• 360-degree wall, floor, and ceiling projection
• One-click switching across built-in 8K wedding themes
• Glasses-free 3D and interactive runway or floor effects
• Multi-channel edge blending and geometric correction
• Optional radar or infrared interaction

Technical Specifications

System type

Immersive banquet hall/wedding projection blending and control system

Recommended light source

ALPD laser light source; lifespan >= 30,000 hours

Single-unit brightness range

6,000-10,000 ANSI Lumens, selected based on venue lighting and area

Native resolution

1080P / 4K UHD output

Throw ratio

0.23:1-0.38:1 ultra-short-throw lens

Blending and correction

3-16+ channel seamless edge blending; curved, arched, or irregular surface correction

Core server/all-in-one configuration

High-performance graphics workstation with multi-screen expansion and professional GPU; 8K hardware decoding

Control software

One-touch scene switching; synchronized audio, video, lighting, and visuals; tablet control

Interactive module

Optional radar/infrared sensing for floor and wall effects and gesture interaction

Signal input interfaces

HDMI 2.0, DP 1.4, RJ45 network port

Power and consumption

AC 100V-240V, 50/60 Hz; scheduled power and thermal protection

Applications

• Hotel banquet halls
• Wedding chapels
• Immersive restaurants
• Multi-function halls
• Light and shadow art exhibitions
