Large-Scale Immersive Exhibition Hall Projection System

Gallery

Product Overview

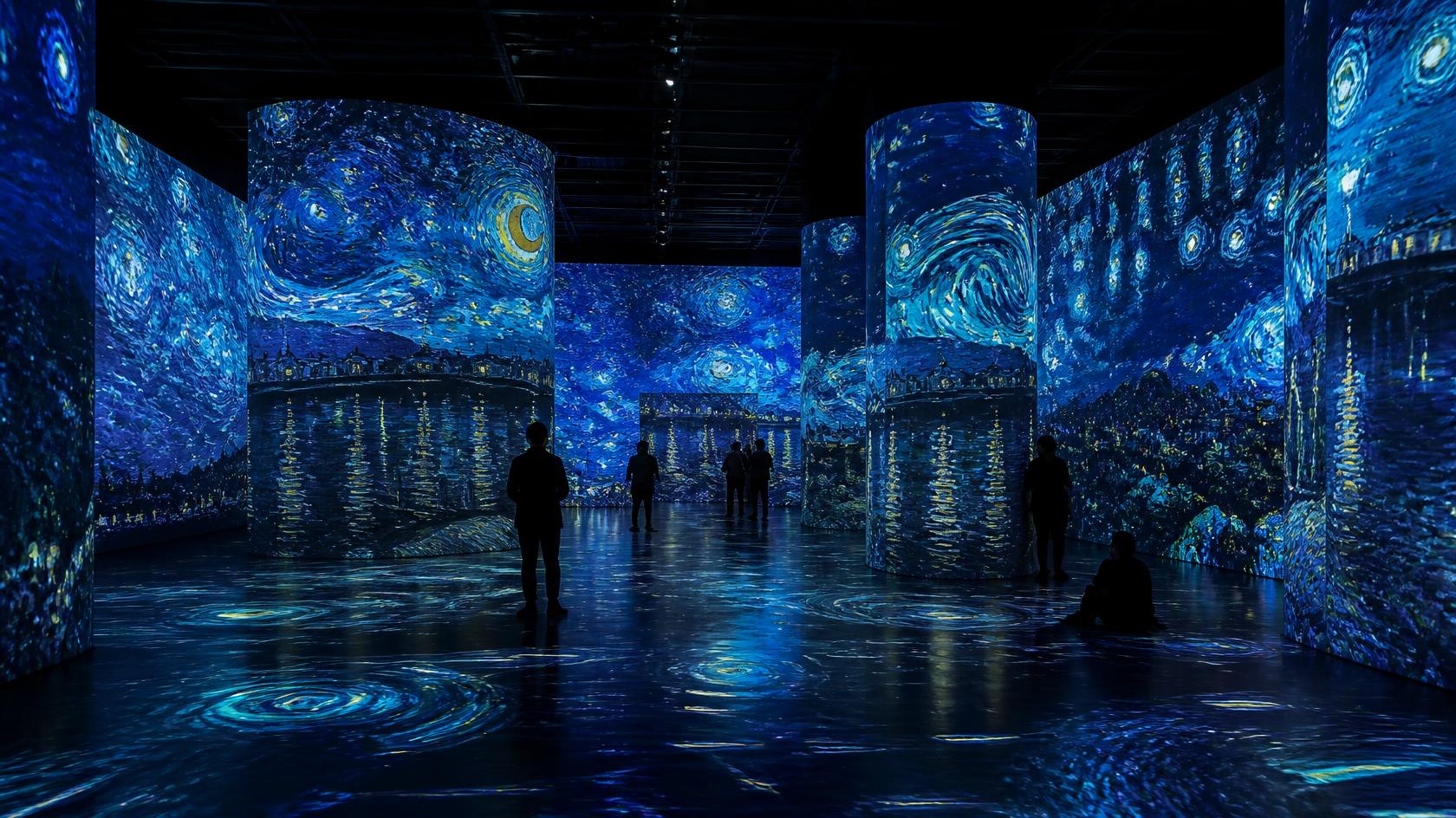

The system supports seamless panoramic projection across ultra-high walls and expansive floor areas for digital art galleries, museums, science and technology centers, corporate showrooms, and cultural tourism venues. It combines high-brightness laser projection with millimeter-level geometric correction and centralized control.

Key Features

• Seamless large-scale multi-projector integration

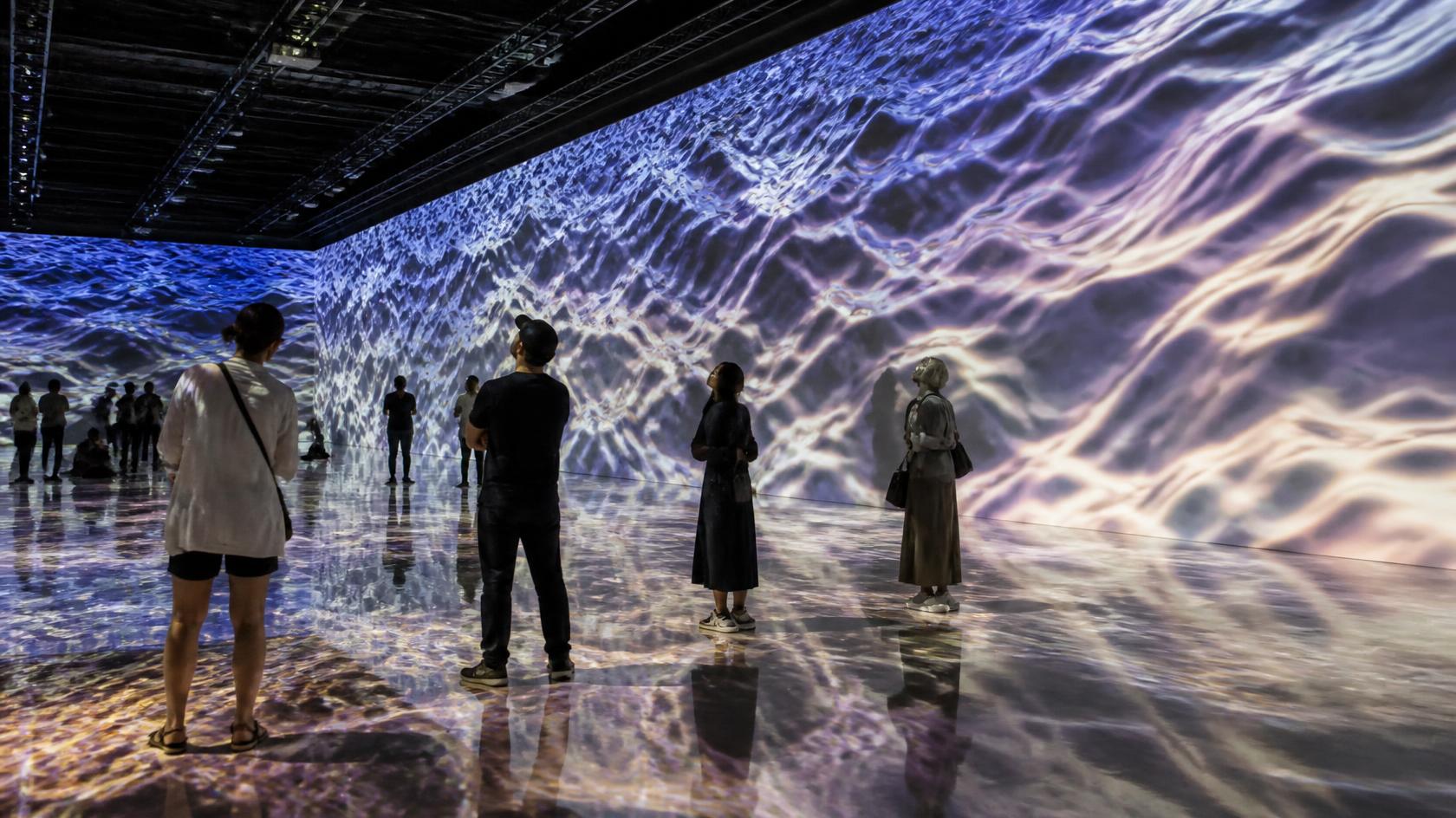

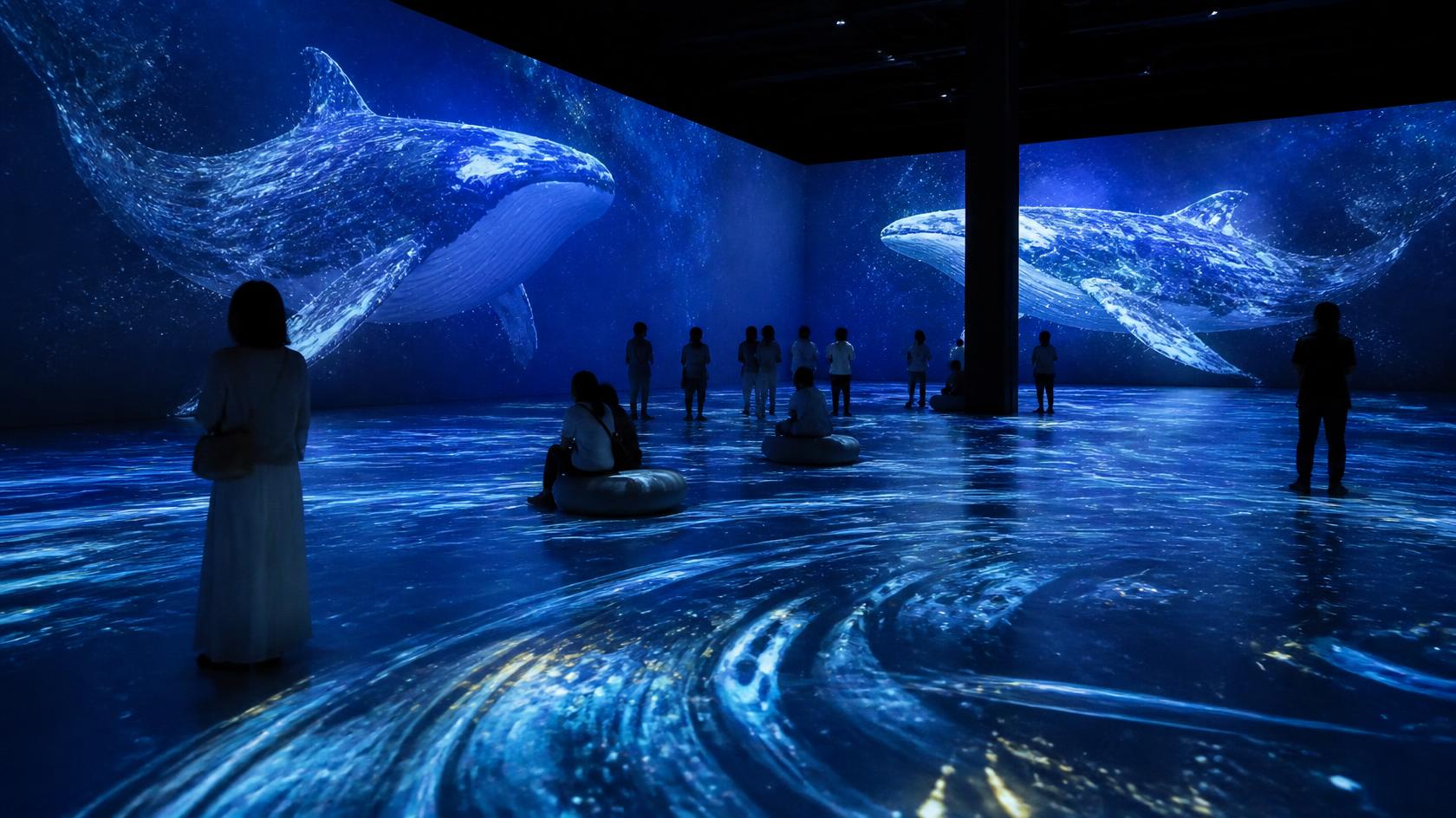

• Wall-to-floor immersive projection
• Native 4K UHD with Rec.709 color reproduction
• Industrial-grade 3D mesh correction and automatic color matching
• Centralized startup, synchronized playback, and remote monitoring

Technical Specifications

System name

Large-scale Immersive Exhibition Hall / Digital Art Museum Projection Blending System

Light source type

ALPD Laser / Pure Laser; lifespan >= 30,000 hours

Single-unit brightness

8,000-15,000 ANSI Lumens, selected by ceiling height, projection area, and ambient light

Resolution and color gamut

Native 4K UHD 3840 x 2160; 100% Rec.709 and HDR dynamic rendering

Contrast ratio

3,000,000:1 dynamic contrast

Throw ratio and lens

0.38:1-1.2:1 selectable; ultra-short throw, motorized zoom, and lens shift

Blending and geometry correction

Industrial 3D mesh correction; 12-64+ channel seamless edge blending and automatic color matching

Server and synchronization

Industrial immersive graphics workstation with professional GPU and multi-card Genlock frame synchronization

Interactivity and sensing

Optional industrial radar sensing up to 25 m; multi-point touch and trajectory tracking

Thermal and operation

IP5X/IP6X dust-proof optical engine; intelligent temperature control; noise <= 32 dB

Power supply

AC 100V-240V, 50/60 Hz; scheduled power and redundant power protection

Applications

• Digital art galleries
• Museums
• Science and technology museums
• Immersive halls
• Corporate showrooms
• Cultural tourism night-tour venues
